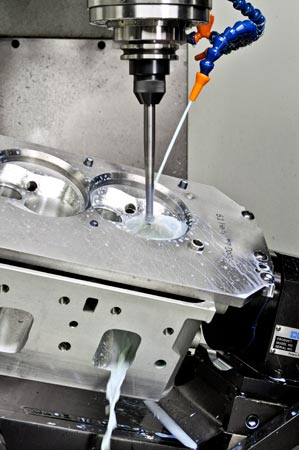

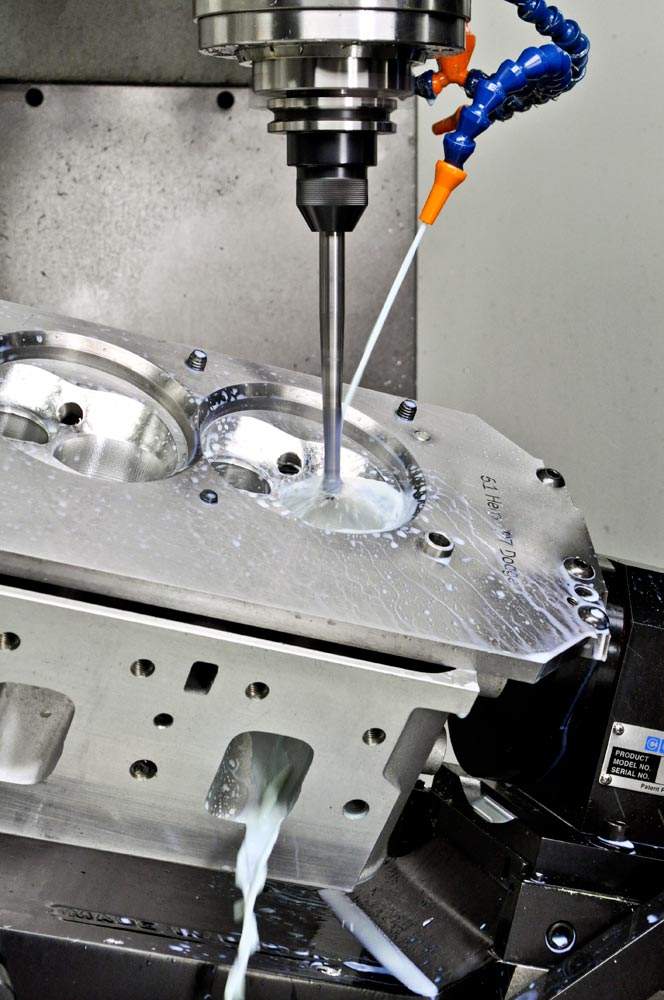

Perfect Port Matching!

No other machine matches the accuracy of the the CENTROID porting system. Our superior combustion chamber side to manifold side matching guarantees that your design is being machined right where it is supposed to be.

Versatile CNC Machine

Multi use machine: Port Cylinder heads and intake manifolds, machine combustion chambers, engrave letters, numbers and symbols, add o-ring grooves and more. V8 heads, V6 and 4 cylinders, Import and motorcycle engines.

Digitize and cut on the same machine

Automatic Digitizing copies your original hand ported head, CENTROID's DP4 Digitizer runs on the CNC machine so there is no need for an extra digitizing machine.

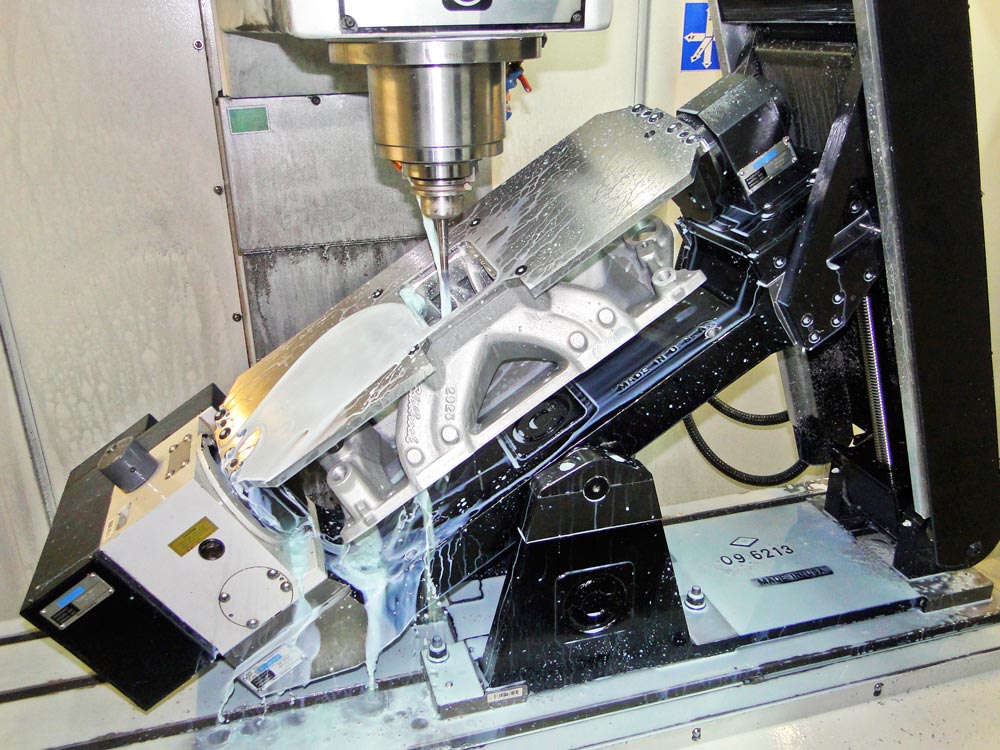

Manifold Porting

As many engine builders know, there is a lot of power to be made by porting intake manifolds. Centroid’s unique digitizing software combined with Mastercam allows you to not only port-match the runners but also easily copy the complex plenum sections of cast manifolds.

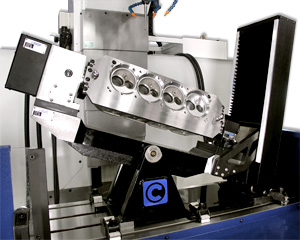

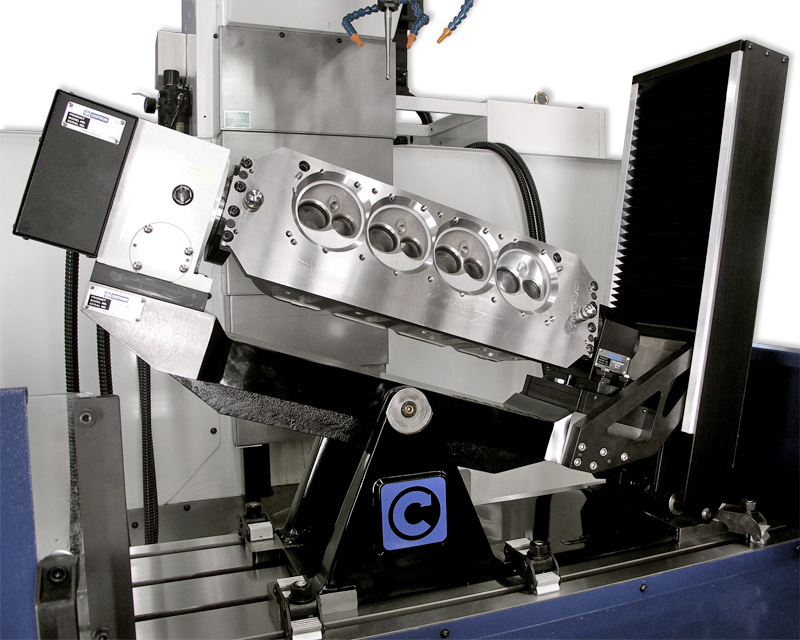

Patented Ballscrew-Driven Design

CENTROID's tilting rotary table was designed specifically for CNC Cylinder head porting. Made in the USA of rigid cast iron the TRT 32-100 provides 32 degrees of tilt in each direction (64 degrees total) so the tool can cut even the most radical ports. Where others have tried CENTROID has succeeded with this ingenous robust design which produces fantastic ports even better than machines costing twice as much!

Integrated Automatic 5-axis Digitizing!

Digitize and Cut using the same machine and the same control software. No extra software to learn, no extra CMM machine necessary to digitize a head. The same setup menus used to cut are used to digitize. Real 5-axis Digitizing method is a CENTROID exclusive time saving feature that produces better results than the competition. No comparison to the 3 axis patch method the CENTROID 5-axis intake and exhaust port digitizing is fast and accurate. No other system can beat it!

Designed for Cylinder Head Digitizing

CENTROID's DP-4 probe and software is specifically designed for digitizing cylinder head intake, exhaust ports and combustion chambers. This patented probe has special features just for cylinder head copying. Simple for users to specify copy resolution for the most accurate and best results.

Automatic Head Setup

Not only is the probe used to copy your custom shapes, the same probe automatically sets the Head zero locations on the fixture. Quick, Accurate, Automatic part setup saves you time and makes setup simple.

Ultra accurate, stainless steel construction, advanced patented circuitry, interchangeable styli, Made in the USA

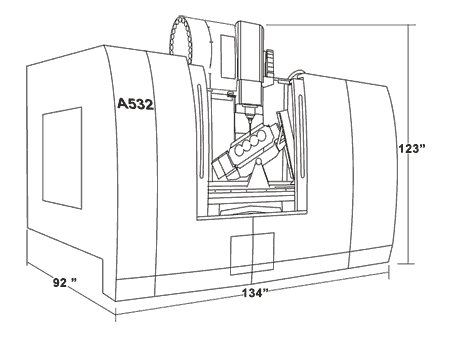

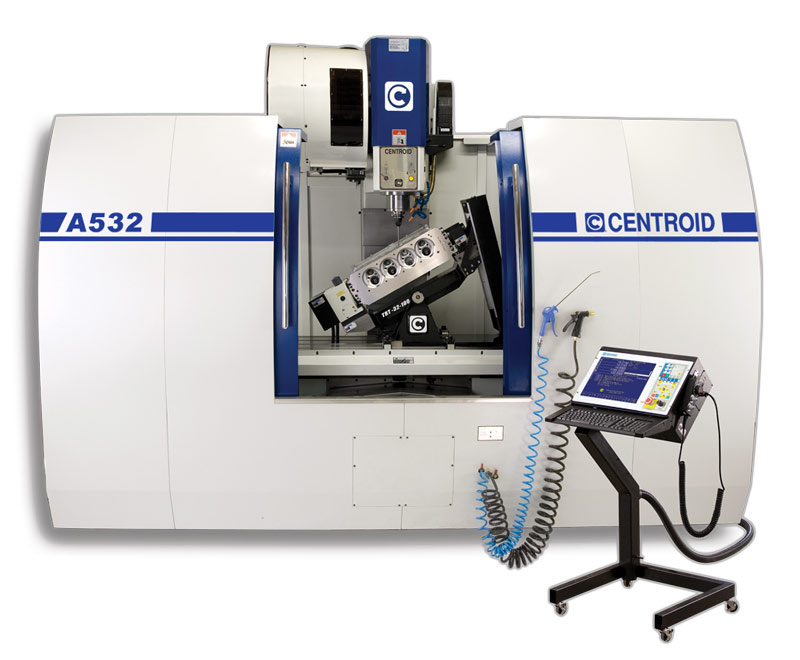

A532 5-Axis CNC Cylinder Head Machining Center

Check out the A532 Cylinder Head Machining Center in action. See a cylinder head being CNC ported from a raw casting perfectly matching the original hand porting. This new CENTROID system is the best way to reproduce winning cylinder head designs with speed, efficiency and most importantly repeatability!

CNC Cylinder Head Porting AND CNC Block Blueprinting and Machining on the Same Machine!

CENTROID's flagship A532-PB: save space and money at the same time with one machine that can do it all! Combines the proven A532 5-axis cylinder head porting machine, the B4250 engine block machine, and a fully capable machining center in one affordable package. Port heads in the morning and blueprint and machine blocks in the afternoon!

CENTROID Demonstrates Automotive Engine CNC Machine Tools at PRI '09

If you didn't get a chance to make it to the 2009 Performance Racing Industry Trade Show in Orlando FL, check out what you missed in this video of the action at the show. A great introduction to the complete CENTROID machine tool line-up!

DASA/Mastercam/CENTROID ATV 5 Axis CNC Cylinder Head Porting

DASA racing felt they had hit a wall in their advanced engine development -- until they brought in a Centroid machine with Mastercam. Now they've cut head porting time by more than 90%, and have opened up new avenues for engine design.

State-of-the-art CNC Control

Made in the USA, the CENTROID M400 comes from a long history of tough industrial CNC controls. The CENTROID CNC is known for its user friendly operator interface combined with powerful features which produce superior cuts and finishes with less work on your part. Simple setup menus guide you thru the process. Advanced CNC features like: Unlimited file size with accell/decell look ahead provides smooth continuous tool motion. USB 2.0 ports and Ethernet for easy file transfer. Stop and restart at any point. Program tool path graphics. The CENTROID is a fast PC based CNC with updatable software so you are always using the latest technology. Operator friendly floor stand is convenient and comfortable to use.

Mastercam CAD/CAM Software

The latest Multi Axis Mastercam software with a one year maintenance agreement is included with every machine. We teach you how to use Mastercam to create perfect CNC ports every time. This powerful package opens your digitizing data and creates the program to port the head, also allows you to tweak hand ported designs if necessary. The CENTROID/Mastercam CNC porting system has sigficant advantages both in cost and effectivness while at the same time is the easiest to learn and the best supported porting package on the market.
